How to capture 3D animation and encode it into video by WebCodecs

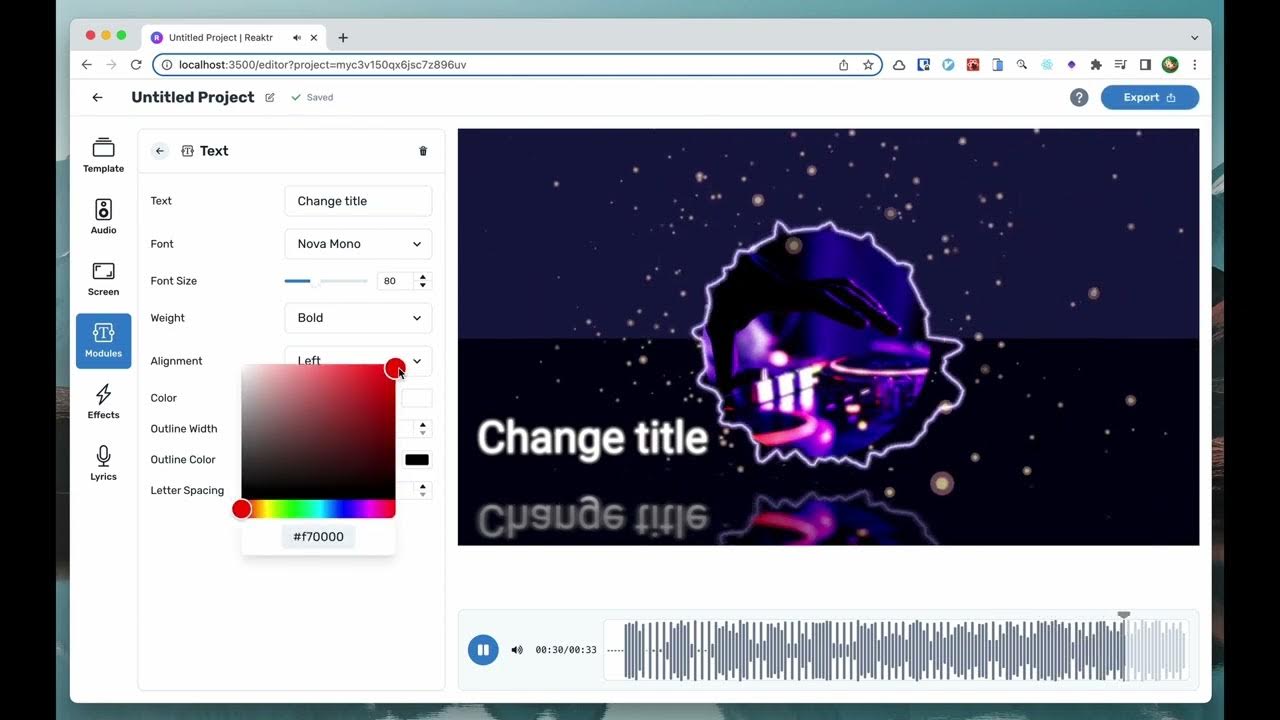

I built a web service called Reaktr that enables users to create audio-reactive video like the demo below:

Reaktr in actionwww.youtube.com

It can capture every frame of the 3D scene rendered on the browser and encode them into an MP4 video.

I managed this feature to work with the help of WebCodecs API. Most of the APIs are still experimental but available on Chrome.

You can record the viewport of the browser by MediaRecorder but it may be unstable (frames are skipped) and the quality is limited depending on the spec of the user's device. Another method is performing rendering on a server, but it requires a powerful and expensive GPU.

The strategy

On the other hand, performing everything on the user's browser enables cost-effective and high-quality rendering (speed depends on the spec of the device, though).

Here's the strategy I did in Reaktr:

• Render the 3D scene by Three.js on the HTML Canvas
• On every frame, create a new VideoFrame from the Canvas (its constructor accepts Canvas as the first parameter)
• Pass the frame to VideoEncoder.prototype.encode method to get an EncodedVideoChunk.
• Pass the chunk to WebM Writer to compose a WebM file.
• Mux the WebM and audio file on AWS Elemental Convert into an MP4 file.
• Upload the MP4 file to S3.

Source and demo

See the full code and try the demo on the links below:

GitHub - sabigara/capture-and-encodeContribute to sabigara/capture-and-encode development by creating an account on GitHub.github.com

Capture & encode democapture-and-encode.vercel.app

Create a Three.js scene with two rotating cubes

First, let's create a 3D scene to be captured. I think anything drawn on HTML Canvas can be captured, but this time I'd like to render rotating cubes by Three.js.

Three.js – JavaScript 3D Librarythreejs.org

import * as THREE from "three";
import "./styles.css";

const appElm = document.getElementById("app")!;

const size = {
  width: 1280,
  height: 720,
} as const;

function initScene() {
  const scene = new THREE.Scene();
  const camera = new THREE.PerspectiveCamera(75, 16 / 9, 0.1, 1000);
  camera.position.z = 2.5;

  const light = new THREE.DirectionalLight(0xffffff, 1);
  light.position.set(0, 0, 2);

  scene.add(light);

  const renderer = new THREE.WebGLRenderer();
  renderer.setSize(size.width, size.height);
  appElm.appendChild(renderer.domElement);

  const cubes = [makeCube([-1, 0, 0]), makeCube([1, 0, 0])];
  scene.add(...cubes);

  return {
    renderer,
    scene,
    camera,
    cubes,
  };
}

function makeCube(position: [number, number, number]) {
  const geometry = new THREE.BoxGeometry(1, 1, 1);
  const material = new THREE.MeshStandardMaterial({
    color: 0x3283a8,
  });

  const cube = new THREE.Mesh(geometry, material);
  cube.position.set(...position);
  return cube;
}

const { renderer, cubes, scene, camera } = initScene();

async function onFrame() {
  cubes.forEach((cube, i) => {
    const speed = 0.01 * (i + 1);
    cube.rotation.x += speed;
    cube.rotation.y += speed;
  });
  renderer.render(scene, camera);

  requestAnimationFrame(onFrame);
}

requestAnimationFrame(onFrame);

Modify WebM Writer to support EncodedVideoChunk

WebM Writer is a great library for building a WebM video on the browser. However, it's a little bit slow because it depends on HTMLCanvasElement.prototype.toDataURL.

Fortunately, @tungs has shared a patch that adds support for EncodedVideoChunk.

webm-writer-js-iife/src/WebMWriter.js at 3dcfa6e63f3aa5bf9bd0c747af7a7989ee1a7038 · framekitjs/webm-writer-js-iifeJavaScript-based WebM video encoder for Google Chrome - framekitjs/webm-writer-js-iifegithub.com

Thanks to the addChunk method, we can now take full advantage of the speed of WebCodecs!

Implement Encoder class

The following is the implementation of Encoder class. Here is what this class does:

• Composes suitable options for VideoEncoder and WebMWriter
• Exposes addFrame method that is called after a frame is drawn on the passed Canvas
• Encodes the frames into chunks and passes the chunks to WebMWriter to create a video file
• Makes the file downloadable when finished

Modify onFrame to call addFrame

Initialize an encoder with options and call addFrame before requesting the next animation frame.

const encoder = new Encoder({
  canvas: renderer.domElement,
  duration: 5,
  framerate: 60,
  videoBitrate: 5_000_000,
});
await encoder.prepare();
let recording = false;

async function onFrame() {
  // ...
  renderer.render(scene, camera);

  let finished = false;
  if (recording) {
    finished = await encoder.addFrame();
  }
  if (!recording || !finished) {
    requestAnimationFrame(onFrame);
  }
}

When the recording variable is true, the encoder will keep adding frames and automatically emits a video file when its length reached the number specified with the duration option.

5 seconds after turning on the recording flag, the following video will be downloaded:

Capture and encode resultwww.youtube.com

That's it!

Thanks to WebCodecs and WebM Writer, I could take full advantage of GPU without writing so much code by myself.

I hope other browsers than Chrome add support for WebCodecs soon!
